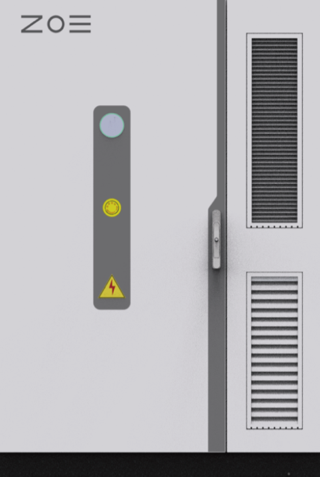

Z BOX-C

C&I All-in-one ESS

105kW / 215kWh | 0.5C

Safe and Reliable

Economical

Smart Management

High-quality, efficient lithium batteries

String ESS preventing chain reactions caused by a single cluster failure

Multi-layered SMS with pack-level pre-alarm function for fire prevention

Corrosion Category C4/C5

Ultra-fast response for virtual power plants, grid connection and on/off grid switch

Highly-integrated all-in-one design for easier transportation and installation

Modular design for easy expansion, enables centralized /decentralized deployment

Easier operation & maintenance

Cloud-edge-end collaboration for 24/7 monitoring, ensuring safe and stable operation

Cloud-based big data and intelligent algorithms for flexible system strategy adjustment

Germany-based AWS servers: ensuring robust data privacy compliance

User-friendly remote control and time-of-use model

Technical Specifications

  • Battery data
    Cell type LFP
    Rated capacity 280 Ah
    Serial-parallel type 1P240S
    Rated capacity per pack 43.008 kWh
    Pack number 5
    System rated energy capacity 215.04 kWh
    Rated DC voltage 768 V
    Rated DC voltage range 672~864 V
    Rated DC current 140 A


  • AC data
    Rated AC power 105 kW
    Rated AC voltage 400 Vac
    Rated frequency 50/60 Hz
    Rated AC current 152 A
    Max. AC current 167 A
    AC wiring type 3W/N+PE
    Power factor -1 ~ 1


  • General data
    DOD 95%
    Noise
    ≤75dB
    Protection degree IP 55 (Battery room&PCS room)
    Cooling method Liquid cooling/ heating
    Fire suppression system Aerosol
    Operating temperature range -20 ~ 55 °C  ( > 45°C derating)
    Relative humidity 5% ~ 95% RH
    Max.working altitude 2000 m
    Display Web/ LED
    COM interfaces RS485/ Ethernet/ 4G (optional)
    Dimensions (L*W*H) 1344*1399*2080 mm
    Weight 2450±50 kg

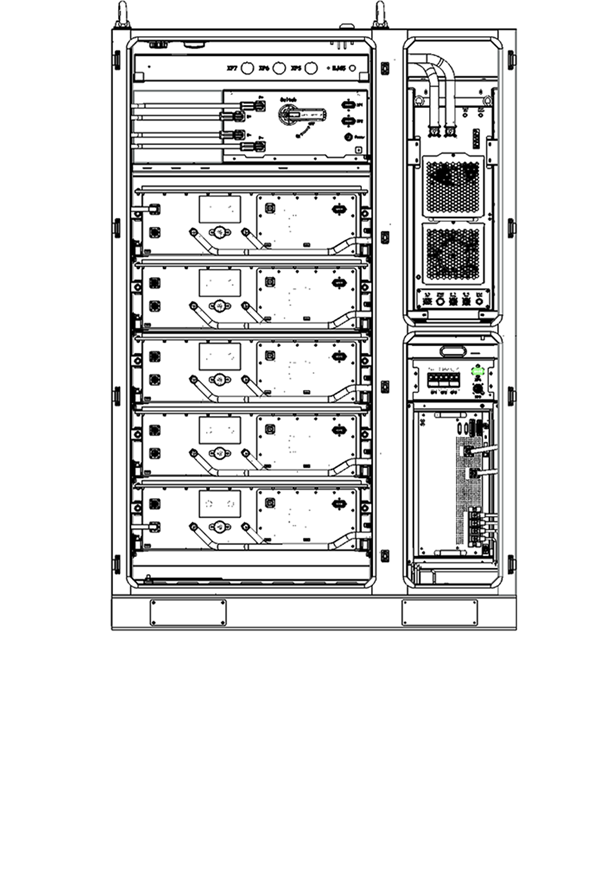

  • A Look on the Inside

    Safe and Reliable, Economical, Smart Management

    The Z BOX series is designed as an efficient energy management solution for commercial and industrial users.
    They help optimize power usage and increase lifecycle revenue through Self-Consumption, Peak Shaving, Frequency Regulation, Dynamic Capacity Augmentation etc.


    Safe and Reliable
    · High-quality, efficient lithium batteries
    · String ESS preventing chain reactions caused by a single cluster failure
    · Multi-layered SMS with pack-level pre-alarm function for fire prevention
    · Corrosion Category C4/C5

    Economical

    · Ultra-fast response for virtual power plants, grid connection and on/off grid switch
    · Highly-integrated all-in-one design for easier transportation and installation
    · Modular design for easy expansion, enables centralized /decentralized deployment
    · Easier operation & maintenance

    Smart Management

    · Cloud-edge-end collaboration for 24/7 monitoring, ensuring safe and stable operation
    · Cloud-based big data and intelligent algorithms for flexible system strategy adjustment
    · Germany-based AWS servers: ensuring robust data privacy compliance
    · User-friendly remote control and time-of-use model


    Four-layer Safety System

    Cell Protection

    Collects BMS data and key environmental parameters, enabling comprehensive health monitoring, risk prediction, and early warning of cells.

    Module Protection

    Detects early thermal runaway signs using acoustic AI technology, offering warnings 20 times faster than traditional methods with a 15-year lifespan.

    Cluster Protection

    Activates aerosol fire suppression upon detecting abnormal temperature or smoke, ensuring full cabinet protection with 20mm fireproof insulation.

    Station Protection

    Ensures stability and security with physical safety measures, advanced firefighting, health management, and information protection.
