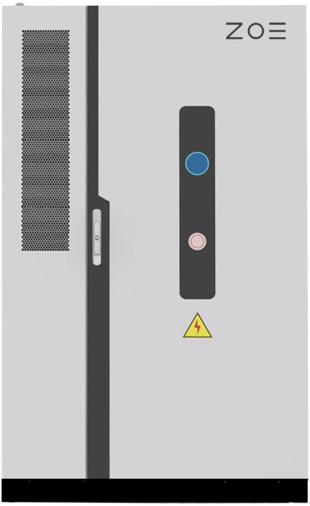

Z BOX-H 418 2H-Energy Storage System

Z BOX-H 418

Scalable 1500V Battery Cabinet

Z BOX-H 418 2H

418kWh | 0.5C

314Ah Cell (CATL optional)

IP55 Protection Level

Maximize System Uptime

Safe & Reliable

Tier 1 PCS-Compatible

Flexible Deployment

Long-life battery cells

High-quality, efficient lithium batteries, cabinets physically separated for safety

Output AC400V/480V/690V/800V

Modular design for easy expansion

Technical Specifications

Battery data

Cell Type	LFP
Rated Capacity	314Ah
Serial-Parallel Type	1P416S
Rated Capacity Per Pack	52.248kWh
Pack Number	8
System Rated Energy Capacity	418kWh
Rated DC Voltage	1331.2V
Rated DC Voltage Range	1164.8~1497.6V
Rated DC Current	157A

General data

Anticorrosion Rating	C4(C5 Optional)
Noise	≤70dB
Protection Degree	IP55
Cooling Method	Liquid Cooling/Heating
Fire Suppression System	Aerosol
Operating Temperature Range	-30°C~55°C(>45°C Derating)
Relative Humidity	5%~95%RH
Max.Working Altitude	2000m
Display	Web/LED
Com Interfaces	RS485/Ethernet
Dimensions(LWH)	133013702270mm
Weight	3700±50kg

A Look on the Inside

Optimized for System Safety, Efficiency, and Economy

ZOE Energy's storage system is meticulously designed to enhance system safety, improve energy efficiency, and optimize cost-effectiveness, striving for comprehensive performance optimization of energy storage solutions.

Safety:

·Four-layer safety system, creating an energy storage system that ensures peace of mind.

·Pioneered the use of voiceprint monitoring and warning sensors, offering an early warning response 20 times faster than traditional sensors.

Efficiency:

·System efficiency optimization to enhance power generation and revenue over the entire lifecycle.

·Designed with a lifespan exceeding 20 years, reducing LCOS by 9%.

Economy:

·The system maximizes cost-effectiveness through real-time monitoring and intelligent O&M via the EMS Cloud Platform, ensuring safety and profitability.

·Advanced data analytics enhance power generation forecasts, battery diagnostics, and VPP dispatch strategies, driving economic efficiency and reducing overall costs.
