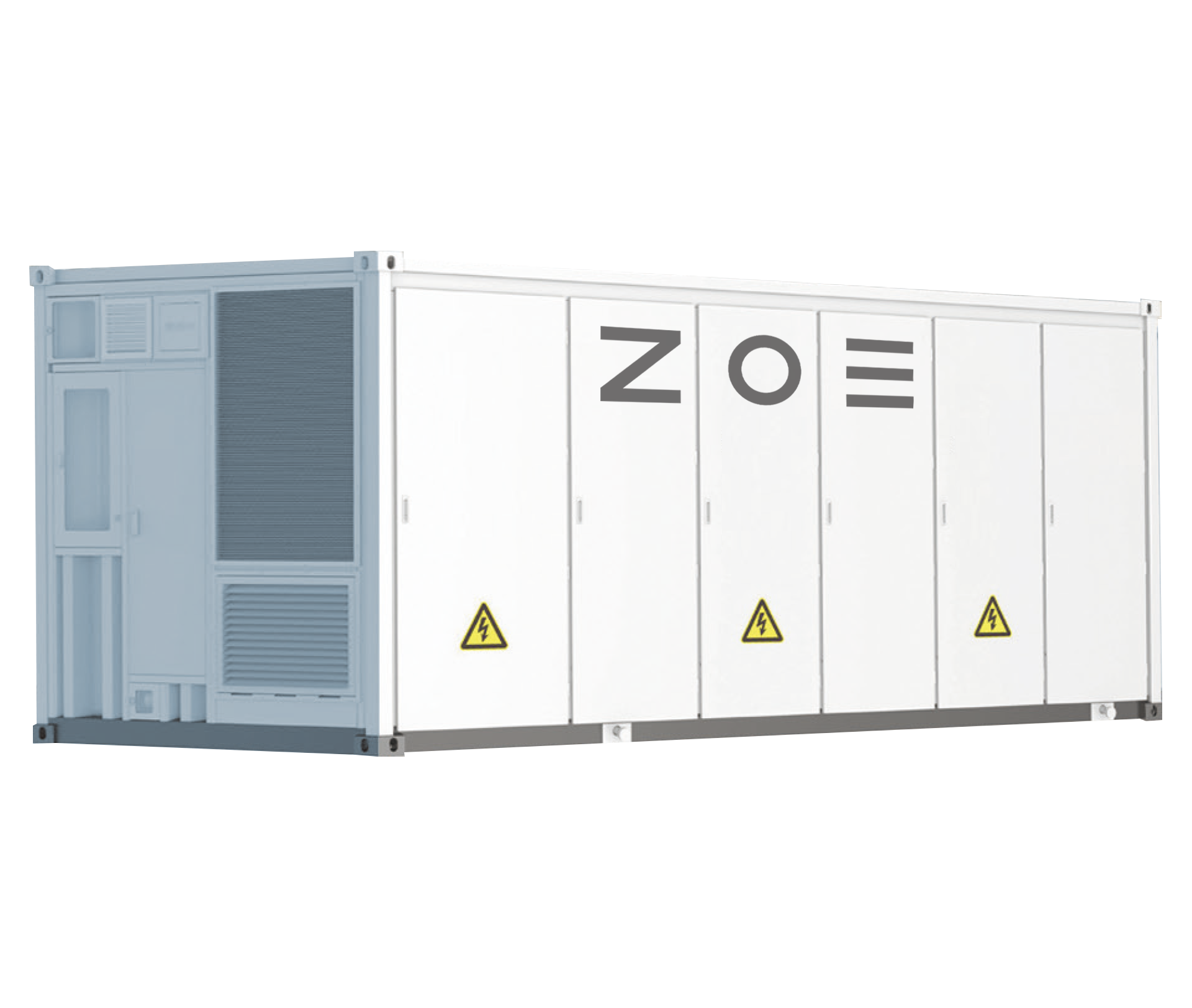

Z BOX-P 3400
Utility-Scale Battery Container
3421kWh | 0.5C
Safe and Reliable
Efficient and Economical
| Cell type | LFP |
| Rated capacity | 300 Ah |
| Serial-parallel type | 9P396S |
| Rated capacity per pack | 42.24 kWh |
| Pack number | 9*9 |
| System rated energy capacity | 4321.44 kWh |
| Rated DC voltage | 1267.2 V |
| Rated DC voltage range | 990Vdc~1445.4 V |
| Rated AC power |
1710.72kW |
|
|
|
| DOD | 95% |
|
Noise |
≤75dB |
| Protection degree | IP 54 |
| Cooling method | Liquid cooling/ heating |
| Fire suppression system | Aerosol |
| Operating temperature range | -30 ~ 50 °C ( > 45°C derating) |
| Relative humidity | 0% ~ 95% RH (non-condensing) |
| Max.working altitude | ≤3000m (>3000m derating) |
| Display | / |
| COM interfaces | RS485/CAN/Ethernet |
| Dimensions (L*W*H) | 6058*2438*2896 mm |
| Weight | 37T |
Four-layer Safety System
Cell Protection
Collects BMS data and key environmental parameters, enabling comprehensive health monitoring, risk prediction, and early warning of cells.
Module Protection
Detects early thermal runaway signs using acoustic AI technology, offering warnings 20 times faster than traditional methods with a 15-year lifespan.
Cluster Protection
Activates aerosol fire suppression upon detecting abnormal temperature or smoke, ensuring full cabinet protection with 20mm fireproof insulation.
Station Protection
Ensures stability and security with physical safety measures, advanced firefighting, health management, and information protection.
