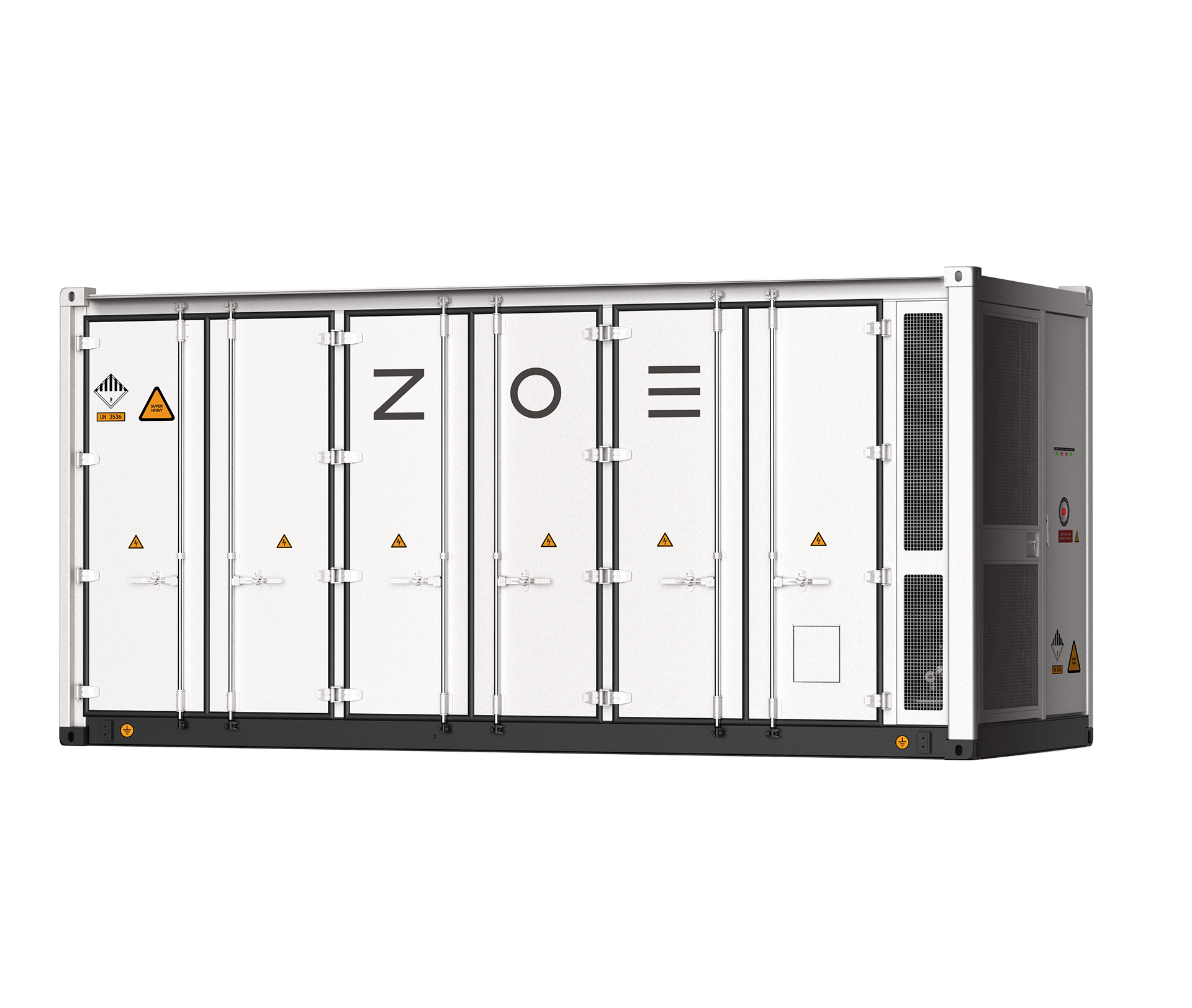

Z BOX-P 5000 2H-Energy Storage System

Z BOX-P 5000

Utility Battery Container

Z BOX-P 5000 2H

5.015MWh

Certified to Safety Standards

Tier 1 PCS-Compatible

IP55 Protection level

Higher Energy Density

Eco-Friendly & Ultra-Quiet

Safe and Reliable

UL9540A & IEC62933

2H~8H Long-duration energy storage

5MWh in one 20ft high container

Minimum average operating noise ≤75dB

Multi-layered SMS with top-mounted explosion venting function

Download

Data Sheet User Manual

Technical Specifications

Battery data

Cell Type	LFP
Rated Capacity	314 Ah
Serial-Parallel Type	12P416S
Rated Capacity Per Pack	104.499kWh
Pack Number	12*4
System Rated Energy Capacity	5.015MWh
Rated DC Voltage	1331.2 V
Rated DC Voltage Range	1164.8~1497.6V

General data

DOD	95%
Noise	≤75dB
Protection Degree	IP55
Cooling Method	Liquid Cooling/ Heating
Fire Suppression System	Aerosol + Water Fire-Fighting + Explosion-Proof Fan (Combustible Gas)
Operating Temperature Range	-30°C ~ 50°C ( > 45°C Derating)
Relative Humidity	0% ~ 95%RH
Max.Working Altitude	2000m
Display	Web
Com Interfaces	RS485/CAN/Ethernet
Dimensions (LWH)	605824382896mm
Weight	42 T approx
Standards&Certification	UL9540A (Pack & Cluster & Container) IEC 62477(Cluster & Container) IEC 62933(Container) IEC 61000-6-2/4 IEC 62619 IEC 63056 Compliance of EU2023/1542

Four-layer Safety System

Cell Protection

Collects BMS data and key environmental parameters, enabling comprehensive health monitoring, risk prediction, and early warning of cells.static/img/product/proboximg1.png
