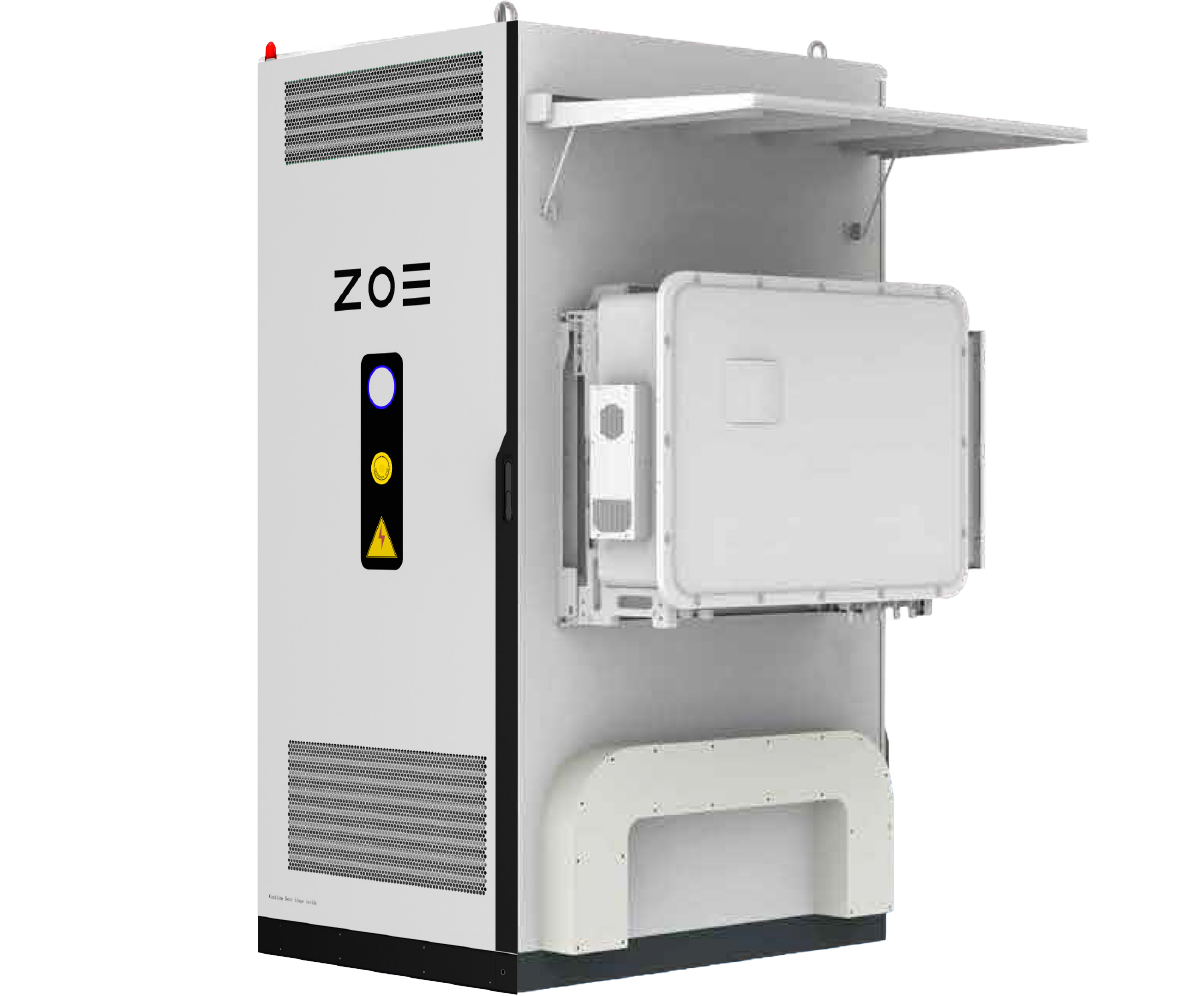

Z BOX-C PLUS 261 Hybrid

C&I Hybrid Cabinet

Z BOX-C PLUS 261 Hybrid

Safe & Reliable

Higher Space Utilization

Expandable & Modular

Versatile

High PV Utilization Capability

Simplified System

IP55,optimized ventilation design,temperature difference within 3°C.
1.4m² Footprint, larger capacity per cabinet,saving space and site cost.
Easy modular design supports parallel connection for convenient system expansion.
Support multiple brands of hybrid inverter, with higher selectivity.
Supports up to 250 kW PV input with wide MPPT voltage range for flexible PV system design.
Sufficient power for most C&l applications,reducing parallel inverters.
Download
Data Sheet

Technical Specifications

  • Battery Cabinet
    Cell Type LFP / 314 Ah
    Pack Configuration 52.25 kWh / 1P52S
    System Configuration 261 kWh / 1P260S
    Rated DC Voltage 832V
    DC Voltage Range 728 ~ 936 V
    Max. Charge/Discharge Rate 0.5 P
    Max. Depth of Discharge 100% (25 ± 2°C)
    Cycle Life
         		≥  8,000
  • PV Input
    Max. Input Power 150kW 160kW
         		200kW
         		200kW
         		250kW
    PV Voltage Range 150 ~ 950 V
    MPPT 10
    MAX. Input Current 42A*10
  • AC Side
    Rated Output Power 75kW 80kW
         		99.9kW
         		100kW
         		125kW
    Rated AC Voltage 400 V
    AC Voltage Range ±15%
    Grid Type 3W+N+PE
    Rated Frequency
         		50 Hz / 60 Hz
    Power Factor
         		0.99/ -0.8 ~ +0.8
    THDi
         		≤ 3%
    DC Ratio
         		< 0.5% Ipn
  • General
    Max. Round Trip Efficiency 90%
    Communication Modbus TCP/IP
    Fire Suppression System Aerosol
    Ingress Rating IP55
    Cooling Liquid Cooling + Forced Air Cooling
    Operating Temperature -30°C ~ 60°C  (Derating after 45°C)
    Anticorrosion Rating C4 (C5 Optional)
    Humidity
         		0~95% RH (Non-Condensing)
    Altitude
         		3000m (Derating above 2000m)
    Dimensions (W*D*H)
         		3000m (Derating above 2000m)
    Weight
         		2,600 kg
    Safety/EMC
         		UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4
    Grid Code
         		EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11
