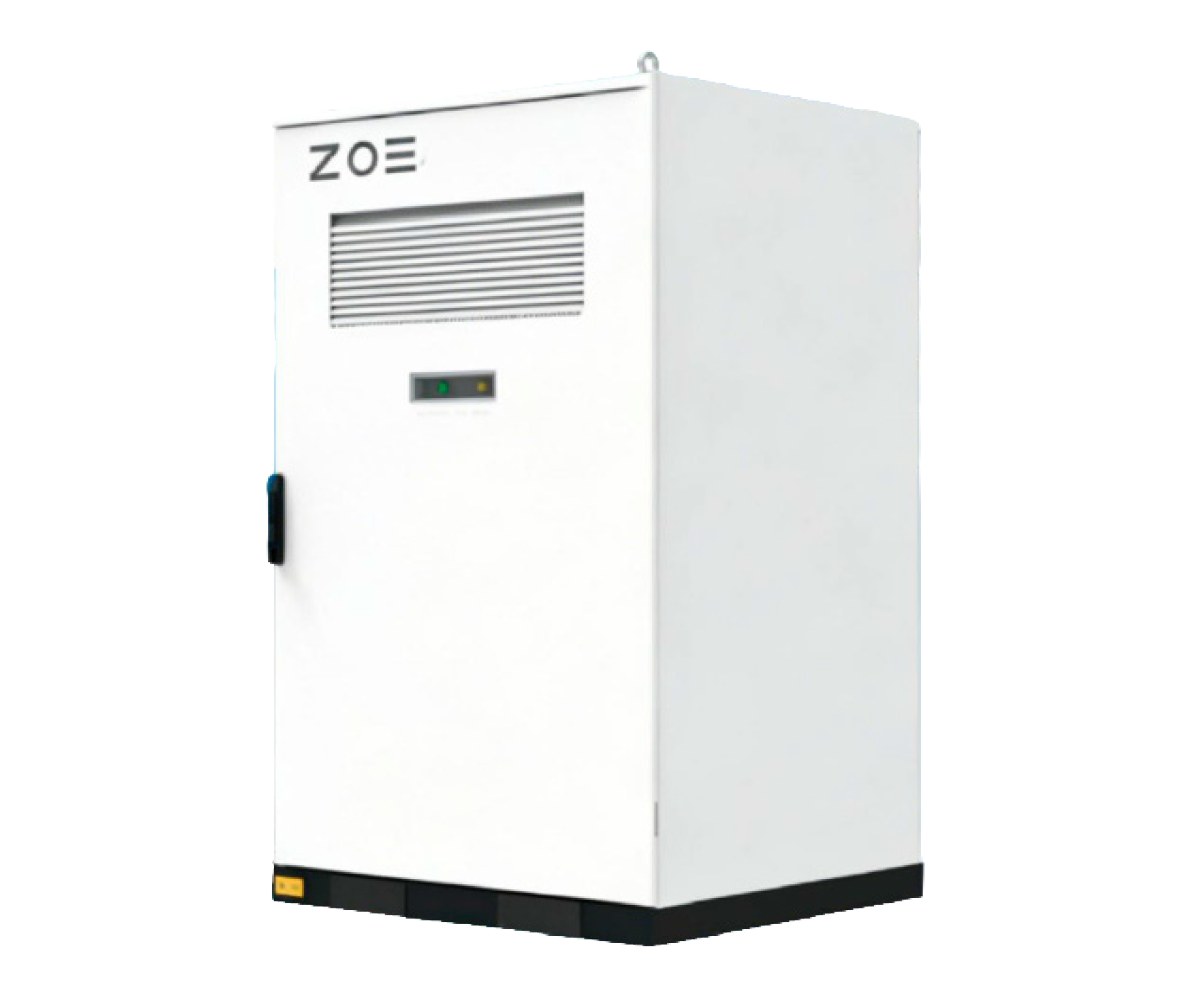

Z BOX-STS 250/500/800
STS Cabinet
Intelligent Collaboration
High Integration
Reliable
Electrical Safety
| ESS Side Parameters | Z BOX-STS 250 |
Z BOX-STS 500 |
Z BOX-STS 800 |
| Max. No. of ESS Connection | 1 unit |
3 units |
5 units |
| Max. ESS Current |
1*200A |
3*200A |
5*200A |
| Rated ESS Power | 1*125kW | 3*125kW | 5*125kW |
|
|
Z BOX-STS 250 |
Z BOX-STS 500 |
Z BOX-STS 800 |
| No. of Grid Connection Port | 1 | ||
| Max. Grid Current |
200A |
600A |
1000A |
| Grid Voltage Range | 400V±15% | ||
|
Grid Type |
3W+N+PE |
||
|
Rated Frequency |
50/60Hz |
||
|
On/off- Grid Switchin Time |
20ms |
||
|
|
Z BOX-STS 250 |
Z BOX-STS 500 |
Z BOX-STS 800 |
| UPS | Standard | ||
| Maintenance Socket |
Standard, 16A |
||
| Surge Protection | AC Type II | ||
|
Meter Accuracy |
0.5S |
||
|
|
Z BOX-STS 250 |
Z BOX-STS 500 |
Z BOX-STS 800 |
| Max. Grid Current | 200A |
600A |
1000A |
| Altitude |
3000m |
||
| Ambient Temperature | -15°C~45°C | ||
|
Humidity |
0~95%RH (Non-Condensing) |
||
|
Cooling Method |
Air Cooling |
||
|
IP Rating |
IP54 |
||
|
Communication |
RS485, Modbus TCP/IP |
||
